IEC 60529 IPX3/IPX4 Oscillating Tube With Rotation Table Control System And Water Tank
Product Details:
| Place of Origin: | China |
| Brand Name: | KingPo |
| Certification: | Calibration Certificate |
| Model Number: | IEC 60529 IPX3/IPX4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | To be quoted |
| Packaging Details: | safety carton pack or plywood box |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 5 units per month |
|
Detail Information |
|||
| Equipment Material: | Waterproof Material | Power Supply: | Three Phase 220VAC 50Hz 2KW,customizable |
|---|---|---|---|
| Angle: | ± 0 ~ 180 Deg | Interval: | 10 Degree |
| Oscillating Tube Holes' Internal Diameter: | 0.4 Mm | Turntable Support: | Grid Shaped Perforated. |
| Highlight: | Waterproof Oscillating Tube,Oscillating Tube With Rotation Table |
||
Product Description

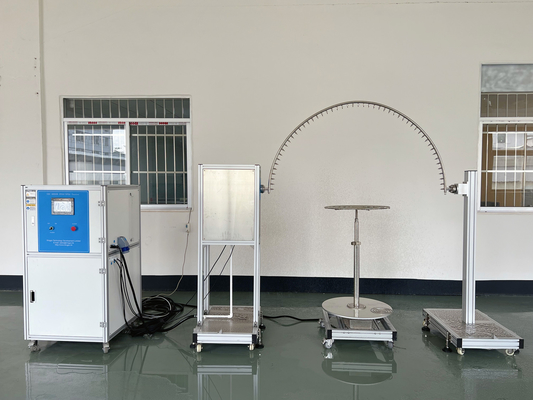

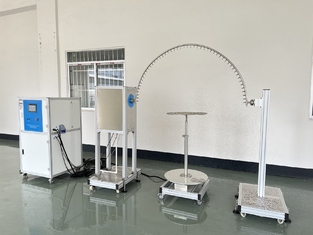

IEC 60529 IPX3/IPX4 oscillating tube with rotation table, control system and water tank
Specification:
|
Clause
|
|

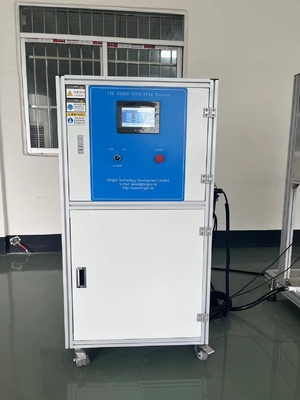

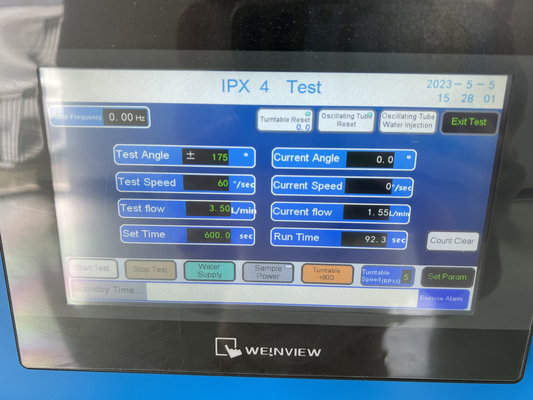

1.1 Main control unit
|
|
1.1.1 One (1) unit of main control unit shall be provided.
|
|
1.1.2 The equipment shall be made using waterproof material.
|
|
1.1.3 The equipment shall compose;
|
|
1.1.3.1 Start and stop buttons.
|
|
1.1.3.2 Timer for test duration. Time: 1 – 60 minutes.
|
|
1.1.3.3 Knob for oscillation speed.
|
|
1.1.3.4 Switch for turning water on/off.
|
|
1.1.3.5 Supply voltage: three phase 220VAC 50Hz 2KW,customizable
|
|
1.1.3.6 Current operated earth leakage circuit breaker of sensitivity 30 mA for protection from
|
|
electrical hazard.
|
|
1.1.3.7 After the operating time, that had been set on the timer, runs out the tube returns to vertical
|
|
position, apparatus is switched off, and the water is shut off.
|
|
1.1.3.8 Start and stop buttons for turntable.
|
|
1.2 Water supply unit
|
|
1.2.1 One (1) unit of water supply system unit shall be provided.
|
|
1.2.2 Water flow meter. Mean flow rate per hole: 0.07 L/Min.
|
|
1.2.2.1 Flow rate of R200: 0.56 L/Min for IPX3 and 0.84 L/Min for IPX4
|
|
1.2.2.2 Flow rate of R400: 1.1 L/Min for IPX3 and 1.8 L/Min for IPX4
|
|
1.2.2.3 Flow rate of R600: 1.8 L/Min for IPX3 and 2.6 L/Min for IPX4
|
|
1.2.2.4 Flow rate of R1000: 2.9 L/Min for IPX3 and 4.3 L/Min for IPX4
|
|
1.2.3 Electromagnetic valve that is controlled by control unit.
|
|
1.2.4 Water filter.
|
|
1.2.5 Manual valve for water flow controlling.
|
|
1.3 Angle control unit
|
|
1.3.1 One (1) unit of angle control unit shall be provided.
|
|
1.3.2 The equipment is designed that it is possible to conduct symmetric and asymmetric oscillations
|
|
with steplessly adjustable both end positions and stop position.
|
|
1.3.3 Equipped with scale (± 0 ~ 180 deg) with three limit sensors and pointer. Interval of 10 degree
|
|
per scale.
|
|
1.4 Oscillating tube
|
|
1.4.1 The equipment shall be made using stainless steel material. Grade 304.
|
|
1.4.2 Four (4) unit of oscillating tube shall be provided as follows;
|
|
1.4.2.1 One (1) oscillating tube with radius of R200 mm.
|
|
1.4.2.2 One (1) oscillating tube with radius of R400 mm.
|
|
1.4.2.3 One (1) oscillating tube with radius of R600 mm.
|
|
1.4.2.4 One (1) oscillating tube with radius of R1000 mm.
|
|
1.4.3 All oscillating tube pipes shall have minimum internal diameter of 15 mm.
|
|
1.4.4 All oscillating tube holes shall have internal diameter of 0.4 mm and each hole shall have
|
|
distance of 50 mm. No of oscillating tube holes shall be accordance to Table 9 of standard IEC 60529
|
|
1.4.5 The oscillating tube for IPX3 shall meet the following;
|
|
1.4.5.1 Oscillate through an angle of 120°, 60° on either side of the vertical.
|
|
1.4.5.2 The time for one complete oscillation (2 × 120°) being about 4 s.
|
|
1.4.6 The oscillation tube for IPX4 shall meet the following;
|
|
1.4.6.1 Oscillate through an angle of almost 360°, 180° on either side of the vertical,
|
|
1.4.6.2 The time for one complete oscillation (2 × 360°) being about 12 s.
|
|

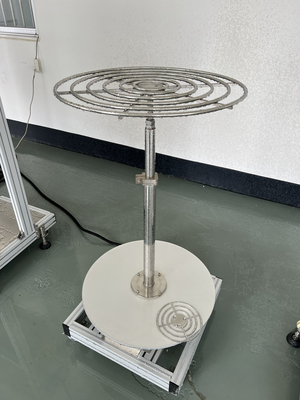

1.5 Turn table with grid shaped for specimen support
|
|
1.5.1 The turntable shall meet the following;
|
|
1.5.1.1 The turntable support has diameter of 500 mm.
|
|
1.5.1.2 The turntable height can be adjusted to meet the suitable distance between test specimen
|
|
and oscillating tube that have variable size.
|
|
1.5.1.3 The turntable support is grid shaped perforated.
|
|
15.1.4 The turntable support can be turned / rotate about its vertical axis during the test at a rate of 1
|
|
r/min.
|
|
1.5.1.5 The turntable support can carry weight of minimum 50 kg.
|
|
1.5.1.6 The turntable shall be made using stainless steel material.
|
|
1.5.1.7 The turntable can be stop manually.
|
