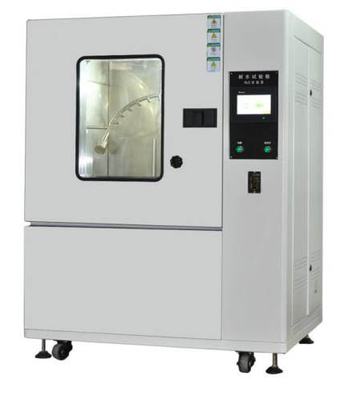

Waterproof Test Chamber with Adjustable Rainfall Pressure 50-450Kpa and Pendulum Swing 60-90-180 Degrees
Product Details:
| Place of Origin: | China |
| Brand Name: | Kingpo |
| Certification: | ISO 17025 Calibration Certificate |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | To be quoted |
| Packaging Details: | safety carton pack or plywood box |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Inner Box Material: | Premium Stainless Steel Sheet SUS#304 (optional SUS#316) | Outer Box Material: | Stainless Steel + Powder Coating |
|---|---|---|---|
| Pendulum Swing: | 60 Degrees 90 Degrees Close To 180 Degrees | Spacing Between Spray Holes: | 50mm |
| Water Pressure Of Rainfall: | 50-450Kpa(adjustable) | Sample Grave Speed: | 1-10rpm |
| Highlight: | 450Kpa Waterproof Test Chamber,Pendulum Swing Waterproof Test Chamber,Adjustable Rainfall Pressure Waterproof Test Chamber |
||
Product Description
Product introduction:
Water resistance test chamber (also known as rain test chamber, waterproof test) is suitable for testing electrical and electronic products, outdoor lighting, automobile and motorcycle lamps, wiper performance, locomotive instrumentation and low-voltage electrical shell protection of water resistance, water resistance test.
Product features:
1, the control system can choose simple programming controller or full-color touch screen control system. Simple operation, stable operation
2, box structure tan with SUS # 304 high-quality stainless steel plate plus powder baking, not only beautiful appearance, but also has a good corrosion resistance.
3, semi-circular arc with full nozzles, the spacing between the nozzles for 50mm, nozzle with two specifications, the diameter of 04mm and 0.8mm, according to the different standards required in the pendulum tube with different diameter nozzles. Easy to replace, the water filtration system to prevent impurities in the water blocking the nozzle
4, control the swing angle of the pendulum tube, swing frequency, rotational speed of the tomb, to effectively ensure that the test according to the standard operation
5, high degree of induction, can safely detect any state, in the shortest possible time to cut off protection and alarm notification, to ensure the safety of personnel and machine use
6, according to IEC60529 IP CODE protection clas, From IPX1~1PX9K combination or according to the customer's product characteristics level to produce.
Specification table:
| Model | QRT-600 | QRT-1000 |
| Inner box size(mm) | 600*600*600 | 1000*1000*1000 |
| Outer box size(mm) | The outer box size is subject to actual | |
| Inner box material | Premium stainless steel sheet SUS#304 (optional SUS#316) | |
| Outer box material | Stainless steel + powder coating | |
| Pendulum radius | R200mm | R400mm |
| Pendulum swing | 60 degrees 90 degrees close to 180 degrees | |
| Spacing between spray holes | 50mm | |
| Water pressure of rainfall | 50-450Kpa(adjustable) | |
| Sample Koo Size | Φ400mm | Φ500mm |
| Sample grave speed | 1-10rpm | |
| Water spray flow | 0.07/min per control, 0.1/min per control, 0.6/min per control (adjustable) | |
| Spray hole diameter | Standard 0.4mm(optional 0.84nm,1.2mm)Φ | |
| Protection level | IPX3, IPX4, R1, R2, S1, S2 of IEC60529, IPX4K, IPX9K of ISO20653 (on request) | |
| Protection devices | Leakage, short circuit, motor overheating protection | |
FAQ
Q :How to provide after sales service?
A:If customers need our engineers on site service, the company only need pay the ticket accommodation to our engineers, service is for free.
If Products still can't use after our engineers repair, we will produce a new test chamber (same as the old one) to our customers with no charge.
You can contact our local service center in overseas market to get service and product.
Q :Do you have an agent?
A:Currently we have agents in Europe, Asia, North America, South Africa, and can provide sales and technical services.
Q :Can we come to your factory to study and train?
A:Welcome to our factory for study and training, we provide this service free of charge.
Q :Can you send engineers to our company?
A:Yes, sure. We will communicate in advance to facilitate the bringing of tools and components
Q :Can I install and debug calibration on site?
A :Yes, we can send technicians and engineers to the customer site for installation, commissioning and calibration.
Q :What are the modes of transportation?
A :Air, sea, rail, multimodal transport.
Q :What is the packaging?
A :Standard export wooden box packaging, solid and firm.
Q :How do you calibrate the equipment?
A :We have our own calibration and third-party calibration such as ISO17025
Q: Is there a door to door service?
A :Yes, there is door to door service. We will arrange a one-stop service.
Q :What are the payment methods?
A Payment methods are T/T, Paypal, L/C, VISA
Q:How long is the warranty period?
A :Warranty period is 3 years, free service for life
Q :Can you ship quickly?
A :Our delivery period is 3-21 days. Some of the hot-selling equipments are in stock and can be shipped within 1-3 days.
