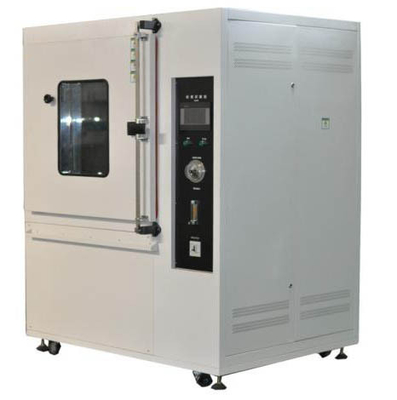

Dust Resistance Test Chamber 45-85%RH Humidity Cold Rolled Steel Powder Baking Paint
Product Details:
| Place of Origin: | China |
| Brand Name: | Kingpo |
| Certification: | ISO 17025 Calibration Certificate |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | To be quoted |
| Packaging Details: | safety carton pack or plywood box |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Test Temperature: | 25~40(Natural Humidity, No Control) | Test Humidity: | 45~85%RH(natural Humidity, No Control) |
|---|---|---|---|
| Dust Spraying Expired: | Intermittent Control, Continuous, Cyclic Stop And Go (adjustable) | Test Dust: | Standard Machine Using Talcum Powder (if You Need To Use Other Sand And Dust Optional) |
| Inner Box Material: | 304# Stainless Steel | Outer Box Material: | Cold Rolled Steel + Powder Baking Paint |
| Highlight: | 85%RH Dust Resistance Test Chamber,Dustproof Test Chamber |
||
Product Description
Product introduction:
dust test chamber (also known as sand test chamber, dustproof), mainly for a variety of automotive parts, electrical and electronic components to do dust and dust test, its main test contains floating dust (F), flowing dust (C), test parts include lights, instruments, seat belt reel, seat adjuster, electrical dust cover, lamps, steering system components culm shaft, door locks, etc. for the durability of dust.
Product features:
1, large transparent window with lighting, window scraping dust, convenient for direct observation of the internal test product condition.
2,Probe with LCD color wave crystal touch screen controller, can be connected with computer to achieve remote monitoring and operation, support USB storage devices, Chinese and English arbitrary switch. Separate control temperature, blowing dust time, floating dust time, shaking dust time, resting time and cycle expiration, etc.
3,Uniform synchronous air hammer vibration dust raising device, electrostatic elimination device can avoid a large amount of dust accumulation on the box wall.
4. Self-correcting dust concentration 100mg/m³-60000mg/m³
6. Can provide IEC, JIS industrial dust, Arizona dust, Butland cement, water-slide powder, Kanto sand and dozens of breathable dust and non-breathable dust
7. Disposable dust collection bag to ensure the health of users, automatic dust recovery device, users can reduce access to the box to clean up.
Specification table:
| Model | QDT-600 | QDT-800 | QDT-1000 |
| Inside Dimension(mm) | 600*600*600 | 800*800*800 | 1000*1000*1000 |
| Outer Dimension(mm) | The size of the outer box is subject to the actual | ||
| Test temperature | 25~40(Natural humidity, no control) | ||
| Test humidity | 45~85%RH(natural humidity, no control) | ||
| Dust spraying expired | Intermittent control, continuous, cyclic stop and go (adjustable) | ||
| Test dust | Standard machine using talcum powder (if you need to use other sand and dust optional) | ||
| Blowing method | Adopt medium-pressure turbine type dust-absorbing special fan to blow test dust into the test space | ||
| Dust shaking method | The dust attached to the inner wall of the machine is shaken off by the vibration motor and recycled into the dust collector. | ||
| Inner box material | 304# stainless steel | ||
| Outer box material | Cold rolled steel + powder baking paint | ||
| Sample Rack | 304# stainless steel, material shelf spacing can be freely adjusted, easy to use, standard with a | ||
FAQ
Q :How to provide after sales service?
A:If customers need our engineers on site service, the company only need pay the ticket accommodation to our engineers, service is for free.
If Products still can't use after our engineers repair, we will produce a new test chamber (same as the old one) to our customers with no charge.
You can contact our local service center in overseas market to get service and product.
Q :Do you have an agent?
A:Currently we have agents in Europe, Asia, North America, South Africa, and can provide sales and technical services.
Q :Can we come to your factory to study and train?
A:Welcome to our factory for study and training, we provide this service free of charge.
Q :Can you send engineers to our company?
A:Yes, sure. We will communicate in advance to facilitate the bringing of tools and components
Q :Can I install and debug calibration on site?
A :Yes, we can send technicians and engineers to the customer site for installation, commissioning and calibration.
Q :What are the modes of transportation?
A :Air, sea, rail, multimodal transport.
Q :What is the packaging?
A :Standard export wooden box packaging, solid and firm.
Q :How do you calibrate the equipment?
A :We have our own calibration and third-party calibration such as ISO17025
Q: Is there a door to door service?
A :Yes, there is door to door service. We will arrange a one-stop service.
Q :What are the payment methods?
A Payment methods are T/T, Paypal, L/C, VISA
Q:How long is the warranty period?
A :Warranty period is 3 years, free service for life
Q :Can you ship quickly?
A :Our delivery period is 3-21 days. Some of the hot-selling equipments are in stock and can be shipped within 1-3 days.
