IEEE Std C57.12.28 figure 4 Pushing tool for for high-force applications in electrical testing, transformer maintenance, and mechanical stress analysis

Product Details:

Place of Origin: CN
Brand Name: kingpo
Certification: ISO 17025 calibration certificate
Model Number: IEEE Std C57.12.28 figure 4

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: to be quoted
Delivery Time: 5-7 working days
Payment Terms: T/T
Supply Ability: 50 units per month
Contact Now

Detail Information
Standard: IEEE Std C57.12.28 Figure 4 Max. Load: 1000N
Resolution: 1N Error: ±0.5%F.S
Square Face: 12.7mm*12.7mm Dimension: 260*66*36 Mm
Highlight:

High Force Pushing Tool

,

Electrical Testing Pushing Tool

,

Transformer Maintenance Pushing Tool

Product Description



Pushing Tool  | Compliance: IEEE Std C57.12.28-Figure 4



Max. Load: 1000N



Resolution: 1N



Error: ±0.5%F.S



Dimension: 260*66*36 mm



According to:IEEE Std C57.12.28-figure4



square face:12.7mm*12.7mm

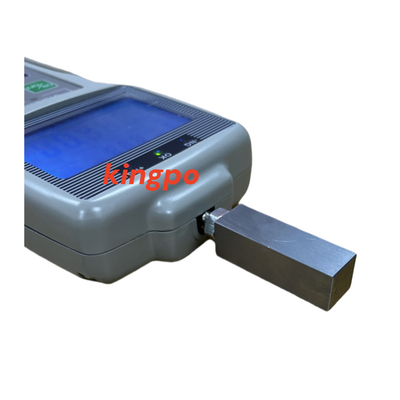

IEEE Std C57.12.28 figure 4 Pushing tool for for high-force applications in electrical testing, transformer maintenance, and mechanical stress analysis 0





1. Max Load Capacity

  • 1000 Newtons (N)

    • Equivalent to ~102 kg (kilogram-force) or ~225 lbs (pound-force).

    • Ideal for high-force applications in electrical testing, transformer maintenance, and mechanical stress analysis.

    •

2. Resolution

  • 1 Newton (N)

    • Precise force measurement increments for accurate, granular control.

    • Critical for applications requiring fine-tuned pressure adjustments.

    •

3. Accuracy & Error Margin

  • ±0.5% of Full Scale (F.S)

    • Translates to ±5N at max load (1000N).

    • Meets industrial standards for repeatability and reliability.

    •

4. Dimensions

  • 260 mm (L) × 66 mm (W) × 36 mm (H)

    • Compact design for easy handling in confined spaces.

    •

5. Standard Compliance

  • IEEE Std C57.12.28-Figure 4

    • Specifically designed for transformer bushing and electrical component testing.

    • Validated for safety and performance in high-voltage environments.

    •

6. Contact Face Specifications

  • Square Face: 12.7 mm × 12.7 mm

    • Precision-machined for uniform force distribution.

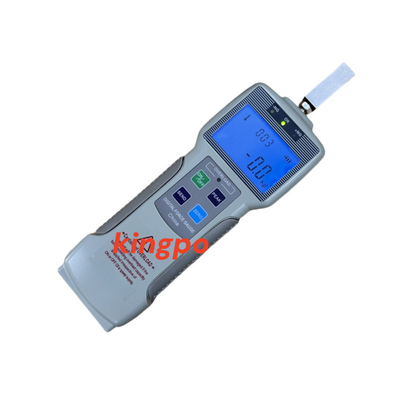

IEEE Std C57.12.28 figure 4 Pushing tool for for high-force applications in electrical testing, transformer maintenance, and mechanical stress analysis 1
