Battery Short Circuit Tester KP-8102A – Datasheet & Technical Specifications

Product Overview

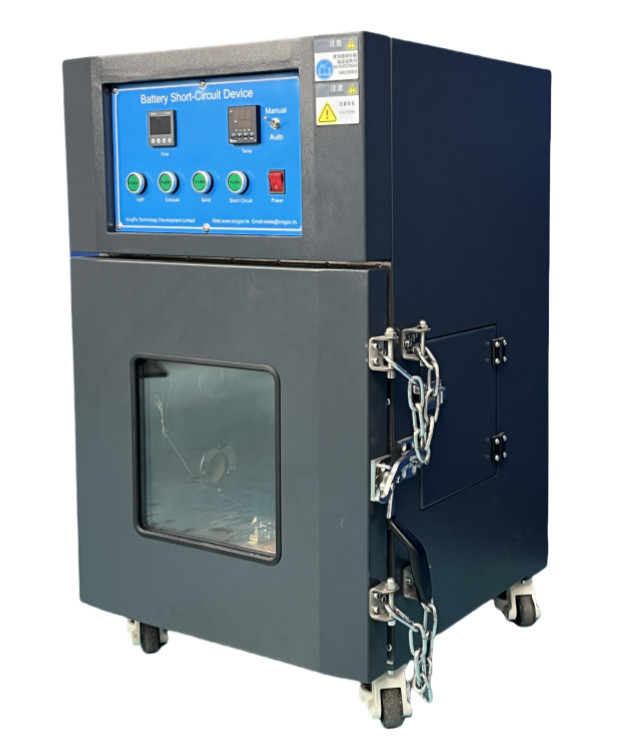

The KP-8102A Battery Short Circuit Tester by Kingpo Technology is a high-precision safety testing device designed to evaluate the short-circuit performance of batteries under controlled conditions. It ensures compliance with IEC60335-1 Clause 19 standards and includes advanced fire suppression mechanisms to prevent hazards during testing.

Key Features

✅ Safety-Centric Design – Equipped with sand fire extinguishing, pressure relief valve, and stainless steel explosion-proof chain.
✅ Automated & Manual Modes – Supports both automatic temperature-triggered sand release and manual operation.
✅ Precision Testing – Measures battery temperature, short-circuit time, and resistance (10±2 mΩ).
✅ Durable Construction – Double-toughened glass, stainless steel wire, and mechanical lifespan of 300,000 cycles.

Technical Specifications

Safety Mechanisms

• Sand Fire Extinguishing – Covers burning batteries automatically or manually.

• Pressure Relief Valve – Prevents explosion risks by releasing excess pressure.

• Double-Toughened Glass – Protects against battery explosions.

• Stainless Steel Chain – Secures the explosion-proof door during tests.

Operation Panel & Functions

1. Time Setting – Adjusts short-circuit duration.

2. Power Switch – Turns the device on/off.

3. Short Circuit Button – Initiates the test.

4. Sand Release – Manual fire suppression activation.

5. Exhaust Switch – Connects to lab ventilation.

6. Light Switch – Internal illumination.

7. Temperature Control – Sets alarm threshold and monitors battery temp.

8. Auto/Manual Mode – Toggles between automatic and manual fire extinguishing.

Testing Procedure

Step 1: Setup

• Connect the exhaust vent to the lab’s ventilation system.

• Power on the device.

• Close the inner door and fill the sand container.

Step 2: Sample Preparation

• Place the battery inside and attach the thermocouple.

• For externally powered tests, use the side test hole.

Step 3: Safety Locking

• Secure the explosion-proof door with the latch and chain.

Step 4: Mode Selection

• Auto Mode – Sand releases automatically if battery temperature exceeds the set limit.

• Manual Mode – Requires pressing the sand button for fire suppression.

Step 5: Short-Circuit Test

1. Connect battery terminals to the internal clamps.

2. Set the desired short-circuit time.

3. Press the Short Circuit button to begin.

4. The test stops automatically after the set duration.

​

Warranty & Support

• 1-Year Free Warranty – Covers manufacturing defects.

• Lifetime Maintenance – Post-warranty service at material cost.

• Exclusions – Damage from misuse, unauthorized modifications, or natural disasters.

Why Choose the KP-8102A?

✅ Reliable Safety Testing – Ensures battery compliance with international standards.
✅ Advanced Fire Protection – Dual sand + extinguisher suppression.
✅ User-Friendly – Clear controls and automated features.
✅ Durable & Long-Lasting – Built for industrial-grade use.

Ideal for: Battery manufacturers, R&D labs, quality control departments, and certification agencies.
