IEC60601-Clause 9.8.3.3 For Dynamic Loading Force Tests From Human Weight
Product Details:
| Place of Origin: | China |
| Brand Name: | Kingpo |
| Certification: | Certificate of ISO17025 |
| Model Number: | KP-6061C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | To be quoted |
| Packaging Details: | safety carton pack or plywood box |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10 pcs per month |
|
Detail Information |
|||
| Brand Name: | Kingpo | Material: | Foam |
|---|---|---|---|
| Standard: | IEC60601-clause 9.8.3.3 | Warranty: | 1 Year |
| Highlight: | Human dynamic loading force tests,IEC60601-Clause 9.8.3.3 |
||
Product Description

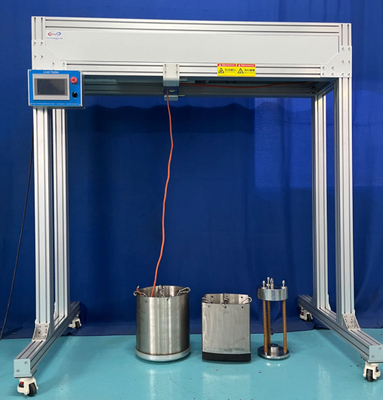

Dynamic forces due to loading from persons- IEC60601-Clause 9.8.3.3
1. According to IEC60601-2-52 Section 201.9.8.3.3.1 for dynamic loading force tests from human weight.
According to IEC60601-2-52 Appendix CC.2.2 Impact test of mattress support table.
According to IEC60601 section 9.4.2.3 Instability.
According to IEC60601 section 9.8.3.3 human body test mass.
2 IEC60601 section 9.8.3.3
2.1) Extension mode: motor drive
2.2) Impact height: 0~300mm adjustable
2.3) Material of counterweight groove: stainless steel groove
2.4) Weight: 0-1400N
2.5) Weight: steel ball
2.6) Weight model: Hard foam
2.7) Number of shocks: 0-9999
3.IEC60601-2-52 Section 201.9.8.3.3.1
3.1) Lifting mode: servo motor + ball screw;
3.2) Test times: 0-99,999 times adjustable;
3.3) Force value: 0 ~ 1500N.
3.4) Automatic stop protection of upper and lower stroke;
3.5) Operating system: PLC+ touch screen
3.6) The maximum width of the sample is 1.7m and the height is 1.2m.
3.7). Equipment frame: assembled from aluminum profiles.
4.IEC60601-2-52 Appendix CC.2.2
4.1) Impact height: 180mm (0-300mm can be set)
4.2) Number of shocks: 0-99999 can be set
4.3) Impactor: Manufactured according to GB 9706.252-2021- Figure CC.2
4.4) Impactor: Diameter 200mm
4.5) Impactor body weight: 17kg
4.6) Total weight: 25kg
